DCCN100X2
Multi-Purpose Concrete Nailer
100 J impact energy, 15-40 mm collated concrete pins, 33-nail magazine.
- 100 J Impact energy
- 15-40 mm Pin length
- 33 Nail magazine
Product Range
Ten cordless fastening tools on one 20V platform
Every model runs on the same 20V brushless platform and shares batteries and chargers. Choose by application below, or go straight to the full parameter table.
Category 01
Concrete & Masonry Nailers
Cordless concrete fastening from 80 J to 100 J, covering multi-trade installation, restricted-access work and high-volume ST T-nailing.

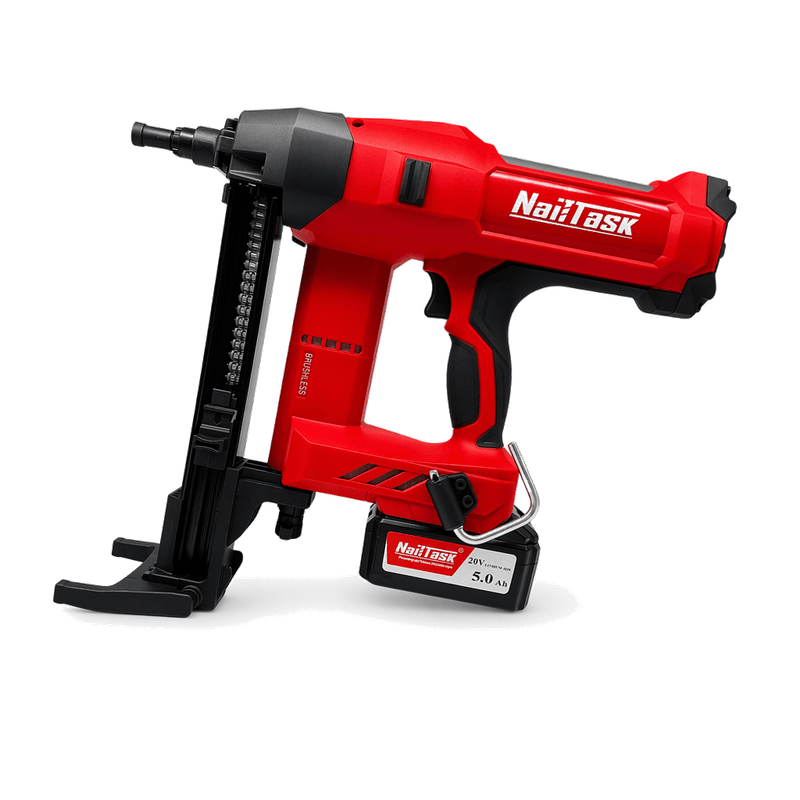

DCCN90S3
Compact Concrete Nailer
90 J impact energy in a compact 390 mm body for overhead and confined-space fixing.
- 90 J Impact energy
- 16-27 mm Pin length
- 33 Nail magazine

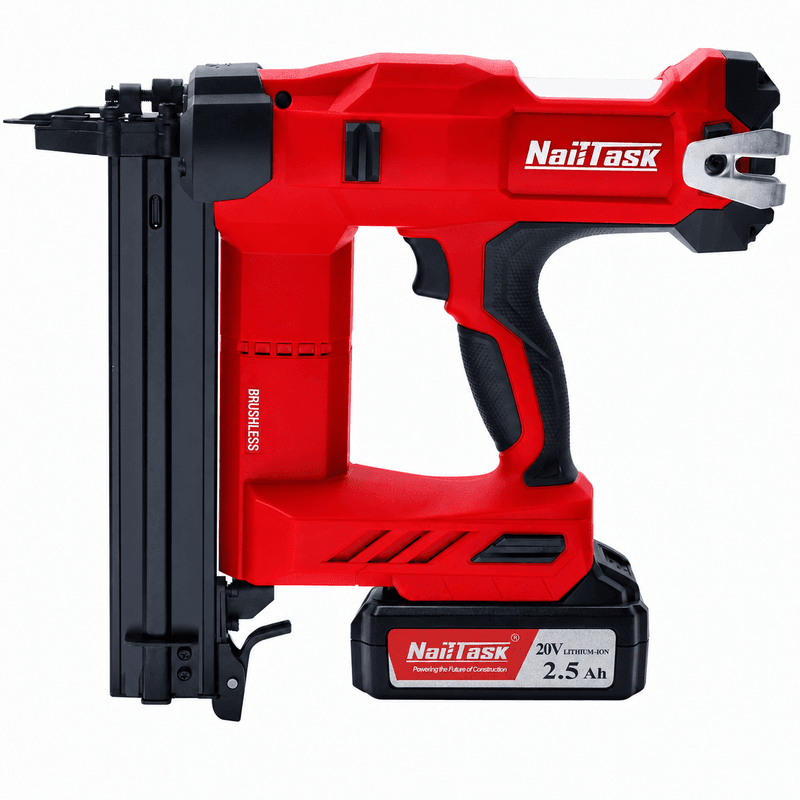

DCCN80-ST38L
ST38 Concrete Nailer
97-nail magazine and 180 nails/min for continuous timber-to-masonry fastening.
- 80 J Impact energy
- 18-38 mm Nail length
- 97 Nail magazine
Category 02
Finish & Brad Nailers
Finish carpentry tools for trim, flooring, staircases, cabinetry and furniture assembly, with dual firing modes and high-capacity magazines.

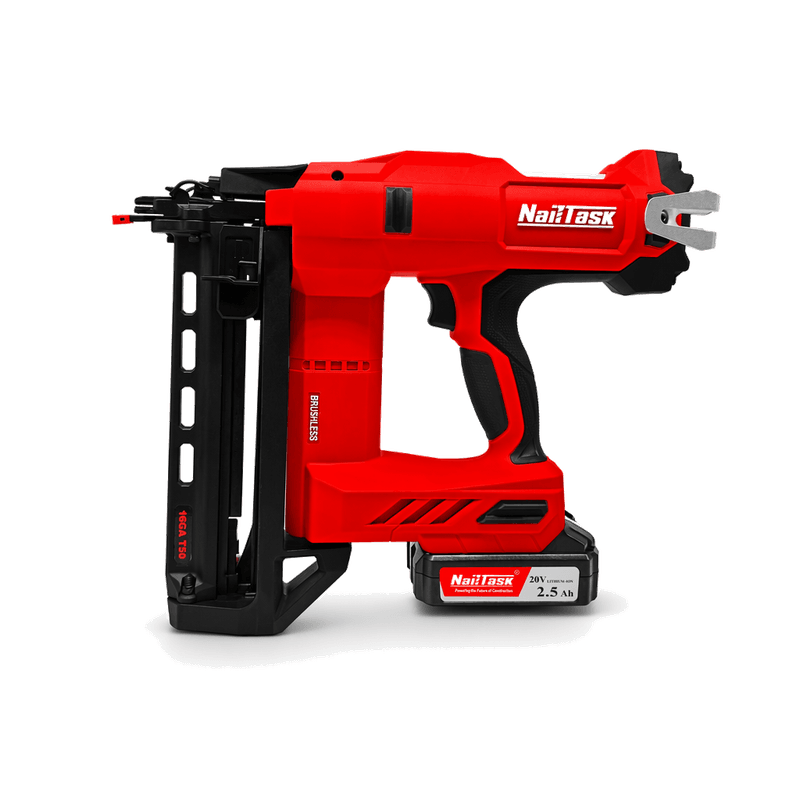

DCFN40-T50
16-Gauge Finish Nailer
16-gauge finish nails from 15 to 50 mm with a 125-nail magazine.
- 40 J Impact energy
- 15-50 mm Nail length
- 125 Nail magazine

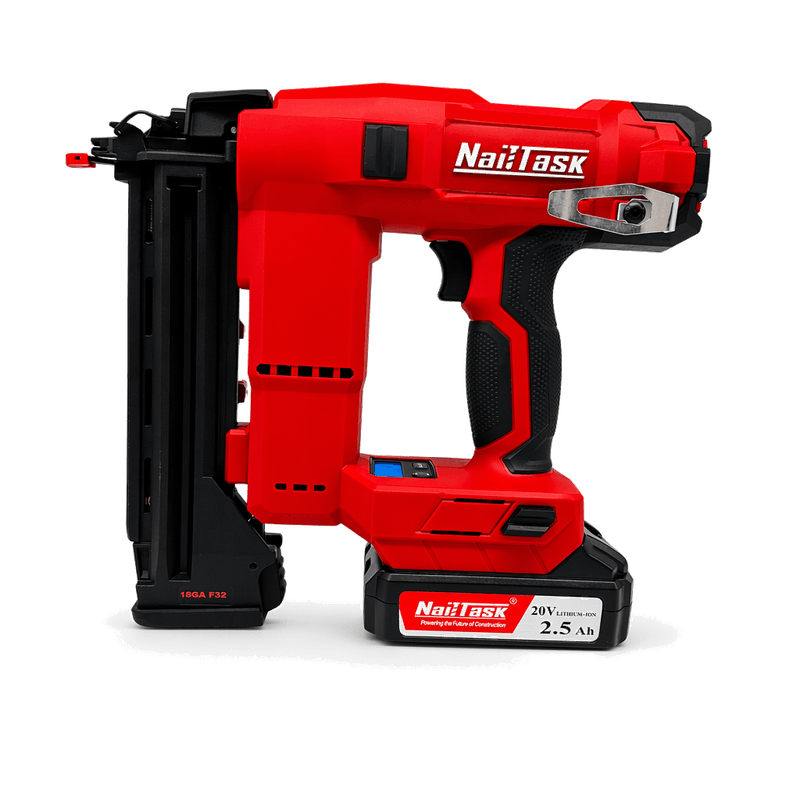

DCBN20-F32
18-Gauge Brad Nailer
Compact 18-gauge brad nailer rated up to 300 nails per minute.
- 20 J Impact energy
- 10-32 mm Nail length
- 120 Nail magazine
Category 03
Framing Nailers
110 J framing platforms for stud walls, trusses, subflooring and sheathing, available in plastic-collated and paper-collated formats.

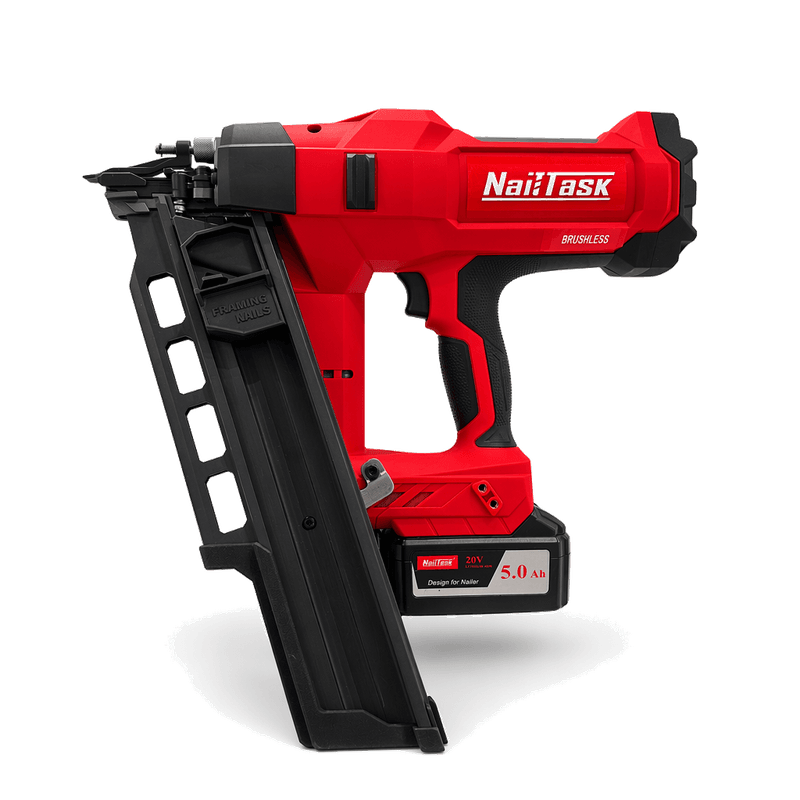

DCFN110-2190
21-Degree Framing Nailer
110 J framing power for 21° plastic-collated full-round-head nails up to 90 mm.
- 110 J Impact energy
- 50-90 mm Nail length
- 38 Nail magazine
DCFN110-3490
34-Degree Framing Nailer
110 J framing power, 34° paper-collated nails and a 53-nail magazine.
- 110 J Impact energy
- 50-90 mm Nail length
- 53 Nail magazine
Category 04
Insulation Pin Nailers
Magazine-free 120 J insulation fastening for thermal and acoustic board systems, including extra-thick building-envelope build-ups.
DCCN120IP
Insulation Pin Nailer
120 J magazine-free insulation fastening for boards up to 160 mm.
- 120 J Impact energy
- 30-160 mm Pin length
- Magazine-free Feed system

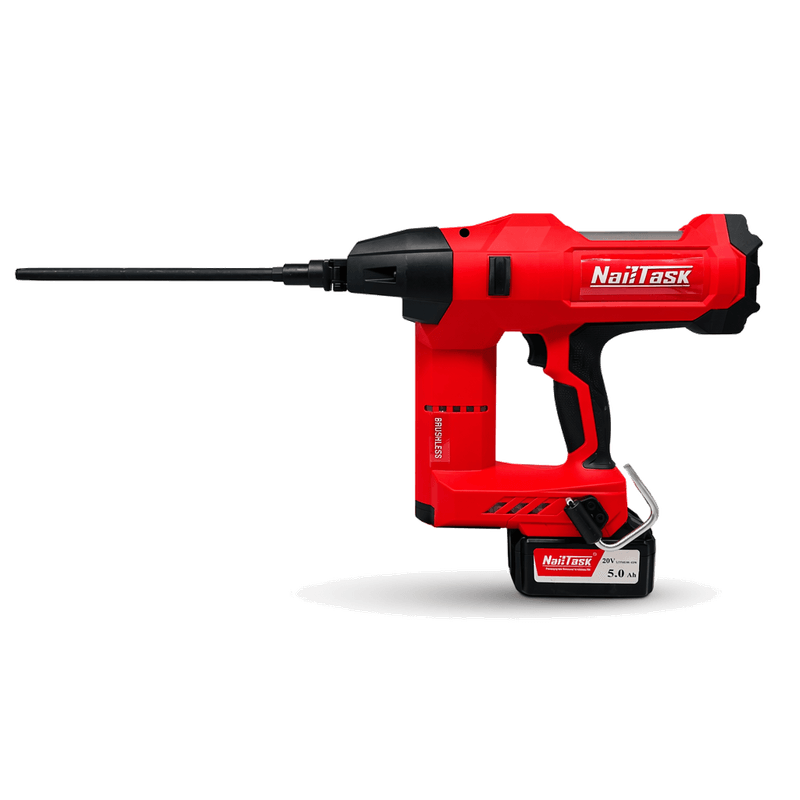

DCCN120IP-250
Extended-Capacity Insulation Pin Nailer
Extended 30-250 mm pin range for thick building-envelope insulation.
- 120 J Impact energy
- 30-250 mm Pin length
- Magazine-free Feed system
Category 05
Fencing Staplers
Heavy-duty cordless stapling for livestock wire, barbed wire, trellis systems and perimeter fencing in remote working environments.
DCFS90
9-Gauge Fencing Stapler
90 J cordless stapling for 9-gauge utility fencing staples.
- 90 J Impact energy
- 40-50 mm Staple length
- 45 Staple magazine
Selection Guide
Start from the application, not the model number
If you know the job, this table gives you the tool. If your requirement is not listed, send it over and our sales engineers will specify against it.
- General-purpose concrete and masonry fastening DCCN100X2 100 J impact energy and wide 15-40 mm pin compatibility
- Confined-space and overhead concrete fixing DCCN90S3 Compact housing for restricted-access installation
- High-volume ST concrete T-nailing DCCN80-ST38L 97-nail magazine, 180 nails/min, and dual firing modes
- Heavy-duty finish carpentry DCFN40-T50 16-gauge nails from 15 to 50 mm
- Fine trim and cabinet assembly DCBN20-F32 Compact dimensions and up to 300 nails/min
- Full-round-head timber framing DCFN110-2190 110 J power for 21° plastic-collated framing nails
- High-capacity framing applications DCFN110-3490 53-nail magazine for 34° paper-collated nails
- Insulation boards up to 160 mm DCCN120IP Dedicated 120 J insulation-pin fastening system
- Extra-thick insulation up to 250 mm DCCN120IP-250 Extended 30-250 mm insulation-pin capacity
- Agricultural and perimeter fencing DCFS90 Heavy-duty 9-gauge utility fencing staples
Technical Parameters
Complete specification table
All ten models side by side. Dimensions are stated as length × width × height, in line with our export documentation.
| Model | Impact energy | Fastener type | Fastener length | Fastener diameter | Firing speed | Magazine capacity | Dimensions (L × W × H) | Firing mode |
|---|---|---|---|---|---|---|---|---|
| DCCN100X2 Multi-Purpose Concrete Nailer | 100 J | Collated concrete pins | 15-40 mm | Ø2.6-3.0 mm | Up to 120 nails/min | 33 nails | 420 × 120 × 320 mm | Single-shot |
| DCCN90S3 Compact Concrete Nailer | 90 J | Collated concrete pins | 16-27 mm | Ø2.6-3.0 mm | Up to 120 nails/min | 33 nails | 390 × 110 × 320 mm | Single-shot |
| DCCN80-ST38L ST38 Concrete Nailer | 80 J | 14 GA ST-series concrete T-nails | 18-38 mm | Ø2.2 mm | Up to 180 nails/min | 97 nails | 330 × 100 × 300 mm | Single-shot / contact actuation |
| DCFN40-T50 16-Gauge Finish Nailer | 40 J | 16 GA finish nails | 15-50 mm | 1.4 × 1.64 mm | Up to 180 nails/min | 125 nails | 340 × 100 × 290 mm | Single-shot / contact actuation |
| DCBN20-F32 18-Gauge Brad Nailer | 20 J | 18 GA brad nails | 10-32 mm | 1.12 × 0.8 mm | Up to 300 nails/min | 120 nails | 260 × 80 × 230 mm | Single-shot / contact actuation |
| DCFN110-2190 21-Degree Framing Nailer | 110 J | 21° plastic-collated full-round-head nails | 50-90 mm / 2-3-1/2 in. | Ø2.8-3.3 mm / 0.113-0.131 in. | Up to 120 nails/min | 38 nails | 390 × 150 × 320 mm | Single-shot / contact actuation |
| DCFN110-3490 34-Degree Framing Nailer | 110 J | 34° paper-collated clipped-head nails | 50-90 mm / 2-3-1/2 in. | Ø2.8-3.3 mm / 0.113-0.131 in. | Up to 120 nails/min | 53 nails | 390 × 150 × 320 mm | Single-shot / contact actuation |
| DCCN120IP Insulation Pin Nailer | 120 J | Insulation pins / insulation washers | 30-160 mm | Ø3.7 mm | Up to 40 pins/min | Magazine-free | 550 × 120 × 320 mm | Single-shot |
| DCCN120IP-250 Extended-Capacity Insulation Pin Nailer | 120 J | Insulation pins / insulation washers | 30-250 mm | Ø3.7 mm | Up to 40 pins/min | Magazine-free | 640 × 120 × 320 mm | Single-shot |
| DCFS90 9-Gauge Fencing Stapler | 90 J | 9 GA paper-collated utility fencing staples | 40-50 mm | 4.1 × 3.55 mm | Up to 90 staples/min | 45 staples | 410 × 110 × 330 mm | Single-shot |
Scroll the table sideways to compare all parameters. Figures stated as “up to” are maximum rated values; confirm fastener collation, head style and substrate compatibility with our sales engineers before placing a production order.
